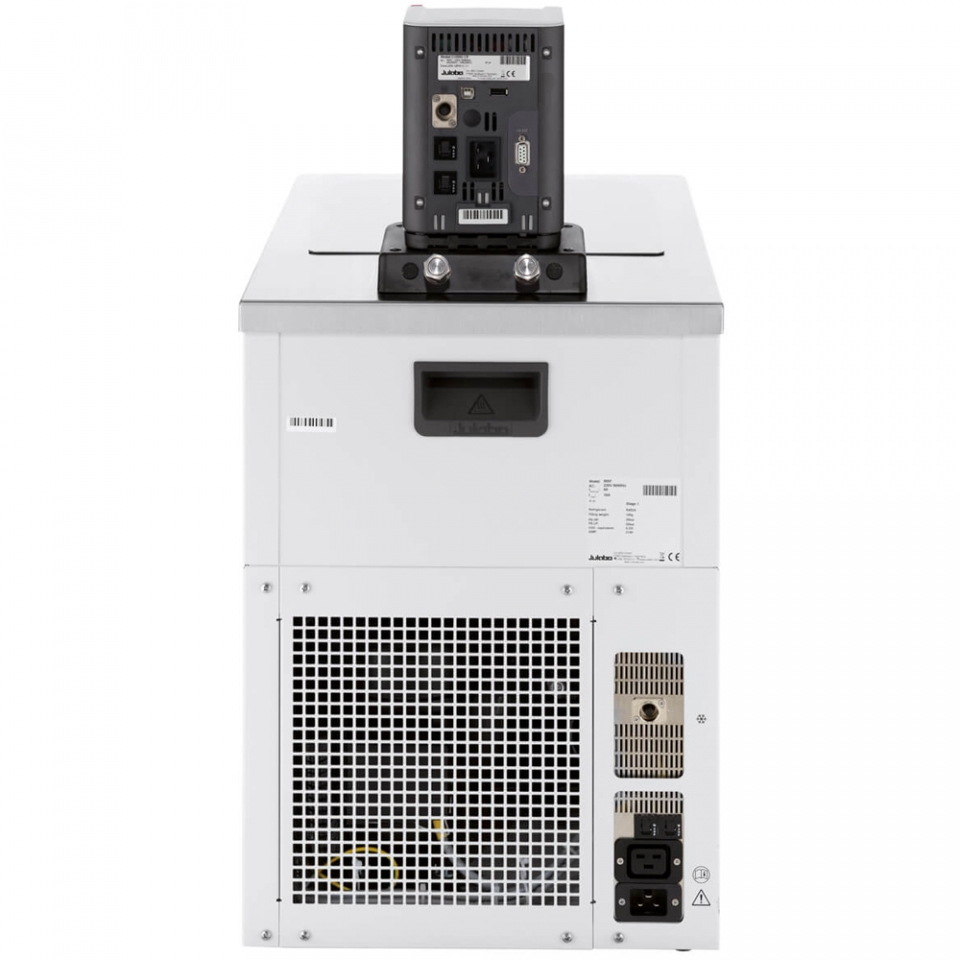

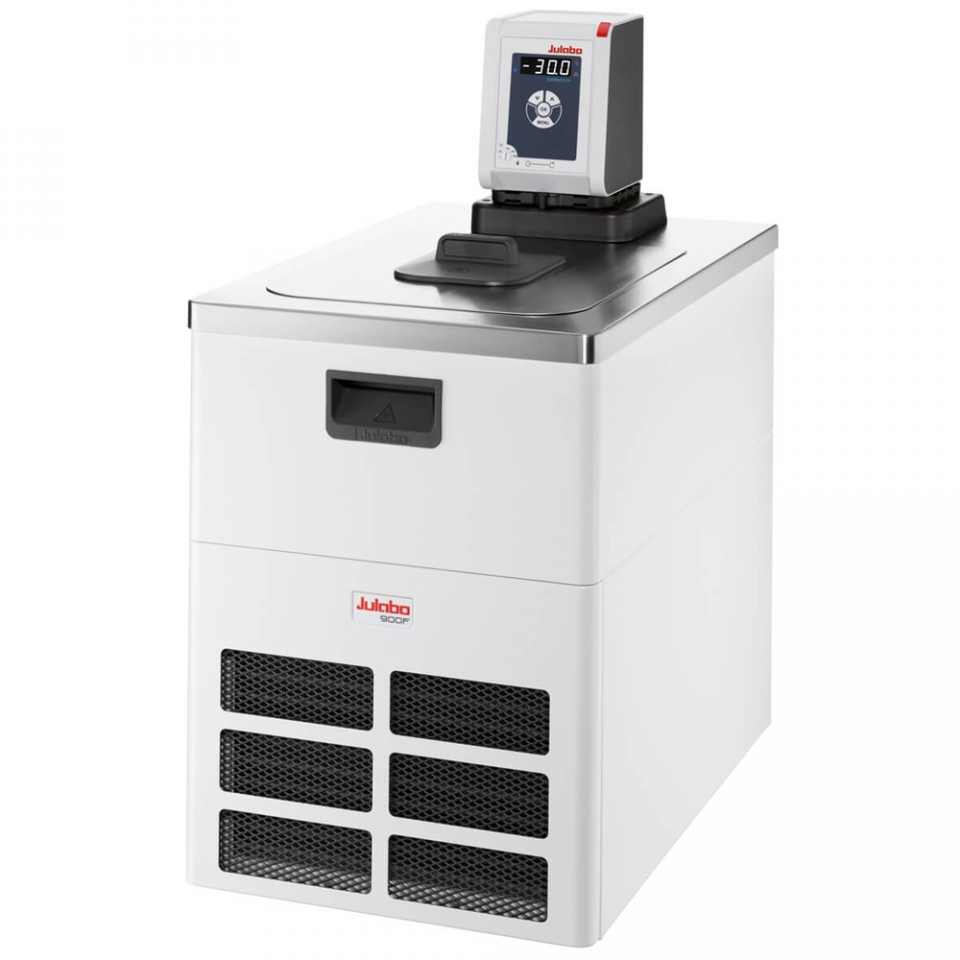

Julabo CORIO CP-900F Refrigerated/Heating Circulator Model # 9013706
Refrigerated Circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
Features
- Models for internal and external applications
- Bright, white, easy-to-read display
- Very quiet
- Easy change-over from internal to external circulation and vice versa
- External pump connections (M16×1)
- USB interface
- R232 interface
- Space-saving cooling coil design provides more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- System for low liquid level
- Class III (FL) according to DIN 12876-1
Available voltage versions:
- 200-230V/50Hz
- 115V/60Hz
Technical Data
| Order No. | 9013706 | ||||||||||||||
| Model series | CORIO | ||||||||||||||
| Category | Refrigerated - Heating Circulators | ||||||||||||||
| Working temperature range (°C) | -38 ... +200 | ||||||||||||||
| Temperature control | PID | ||||||||||||||
| Temperature stability (°C) | ±0.03 | ||||||||||||||
| Setting / display resolution | 0.01 – 0.1 °C | ||||||||||||||
| Temperature Display | LED | ||||||||||||||
| Heating capacity (kW) | 1 | ||||||||||||||
| Cooling capacity (Medium Ethanol) |
|
||||||||||||||
| Pump capacity flow rate (l/min) | 8 ... 27 | ||||||||||||||
| Pump capacity flow pressure (psi) | 1.5 ... 10.2 | ||||||||||||||
| Bath opening / bath depth (W x L / D inch) | 10.2 x 13.8 / 7.9 | ||||||||||||||
| Pump connections | M16x1 | ||||||||||||||
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 | ||||||||||||||
| Filling volume (liters) | 21 ... 30 | ||||||||||||||
| Refrigerant stage 1 | R452A | ||||||||||||||
| Filling volume refrigerant stage 1 (g) | 220 | ||||||||||||||
| Global Warming Potential for | 2140 | ||||||||||||||
| Carbon dioxide equivalent stage 1 (t) | 0.471 | ||||||||||||||
| Ambient temperature | 5...40 °C | ||||||||||||||
| Dimensions W x L x H (inch) | 15.4 x 24.4 x 29.5 | ||||||||||||||
| Weight (LBS) | 114.6 | ||||||||||||||
| Included with each unit | 2 Schlaucholiven passend für Schlauch 8 und 12 mm l.W. (Pumpenanschlüsse mit M16x1 Außengewinde) | ||||||||||||||
| Bath tank | Stainless steel | ||||||||||||||
| Bath cover | integrated | ||||||||||||||
| Cooling of compressor | Air |
