Thumbnail Filmstrip of Spectra Gantry 512 Large Format Inspection Microscope Travel Size 5' x 12" Images
Spectra Gantry 512 Large Format Inspection Microscope
The Spectra Gantry 512 is a stable grantry to allow easy inspection of large samples. The Spectra Gantry 512 has 5 feet side to side, 12 inches front to back travel. The overal size is 6' x 2'. This is perfect for museums looking at art work or tapeistries for example that are just too big for a routine microscope stand.
This design is very stable and can be adapted to any brand of microscope if desired. We carry just about any brand you are familar with. Just let us know and we will work up a quote
Features
Leica S Apo Stereomicroscope
- 8:1 zoom with magnification 10x-80x (10x eyepieces, no supplementary lens) – ideal for large overview of sample as well for inspection of finest details
- Greenough optical design - provides very flat (plan) field of view and large depth of field
- Apochromatic zoom optics - highest optical quality for top performance - 38° angle eye tubes - for comfort and convenience
- 75 mm working distance – provides easy access to specimen and up to 80x magnification
- Resolution up to 300 lp/mm (1x supplementary lens, 10x eyepieces), maximum resolution up to 600 lp/mm (2x supplementary lens, 10x eyepieces)
- Video/photo port – provides easy, fast mounting of digital cameras
- Adjustable zoom stops – inspection at specific magnification can be easily repeated
- "ZeroStat" antistatic polymer microscope covers - Minimize risk of ESD (electrostatic discharge) of sensitive components
- Large range of supplementary lenses as well eyepieces - adapt the optical performance to the application requirements
- Dual Arm Boom Stand for smooth front to back movement
- Cross Rolled Bearings on top plate for smooth left to right movement
Imaging Setup
- High Def Camera
- Live Resolution 1980 x 1080 Resolution at 30FPS
- Capture Resolution 3264 x 1836
- Built-in SD Card for easy image capture - remove card and bring to computer for easy upload
- USB2 Interface to Computer if needed
- Mouse for on screen camera control with no Computer Needed
- 1080P Videos @ 30Fps
- Scale Bars, Coordiates, Lines, Free Hand Lines, Rectangles, Circles, Angles, Point to Point Measurements, Text
- 24" HD Monitor
Lighting
- 150 watt Halogen Light Source with Ring Light
- Dual Goosenecks Optional
Optional
Upgrade to… SPOT 4K UltraHD Plus!
The Insight sCMOS Camera with the Sony Pregius™ sCMOS sensor is a leap forward in digital imaging technology. This new generation of affordable Insight sCMOS cameras delivers features previously found in much higher-priced cameras.
The SPOT Insight sCMOS camera’s USB 3.0 interface and Sony Pregius global shutter work with our best-ever auto-exposure scheme in SPOT software to produce distortion-free, live image viewing of moving specimens at a fast, fluid 22 fps, at full resolution. The Insight sCMOS Camera combines low read-noise and high QE, furnishing sensitivity not previously seen in uncooled cameras.
Many applications are supported due to the wide range of capabilities of the Insight sCMOS cameras, including live-cell, brightfield, histology, pathology, cytology and bright fluorescence imaging.
- Low read noise maintains the camera’s sensitivity at high speed
- USB3 interface for universal connectivity to laptop and desktop computers
- ICC Color Profiling
- Even Illumination! See the Difference!
- Insight’s Auto Brightness feature
- Global shutter produces distortion-free live viewing of moving specimens
- Windows and Mac OS compatible
- Compact design allows it to fit into tight lab spaces
- Included SPOT Basic Software provides live preview, reporting, annotations, reticles and calibration marks in live and captured images, time lapse and other microscope imaging tools
Upgrade to… SPOT 4K UltraHD Plus!
The New Standard In 4K Presentations …:
-

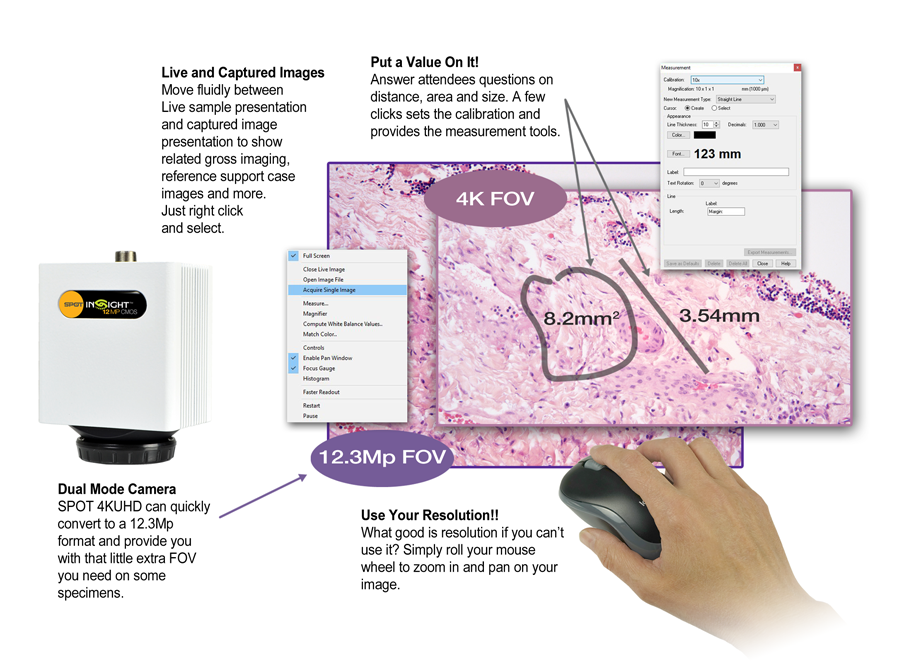

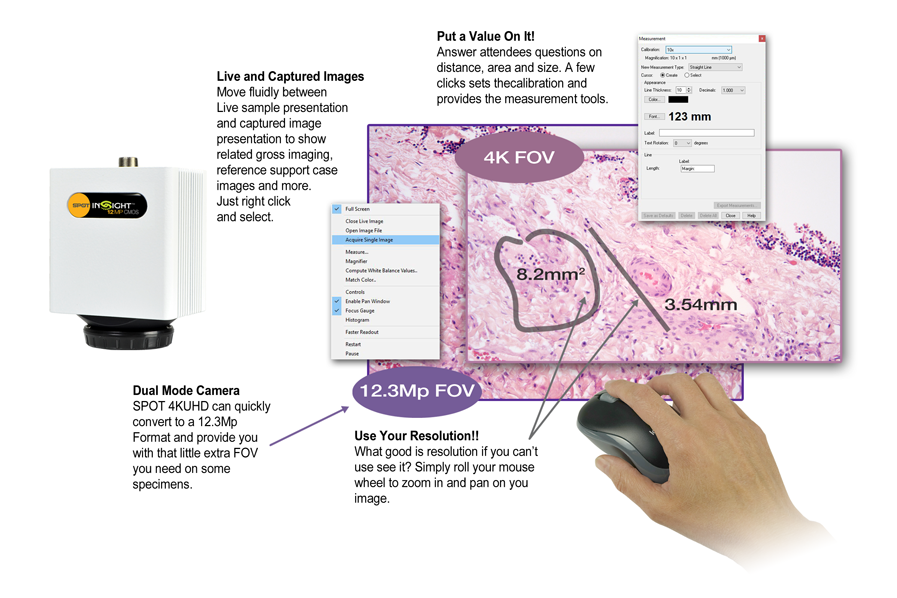

SPOT’s 4K UltraHD system takes you beyond fixed format 4K video presentations. It combines benchmark image quality, easy presentation tools and lets you present both live and captured images.
Easy Presentation Tools Show More and Save Time…:
-
Buying a fixed format 4K Video system is like buying an analog phone in the era of Smart Phones, it doesn’t make sense. The SPOT 4k UltraHD imaging system provides convenient features to enhance your presentation in ways that fixed video system can not. See the difference…
