Thumbnail Filmstrip of Radwag PUE 7.1.62.HRP High Resolution Scale WP-350-0010 Images

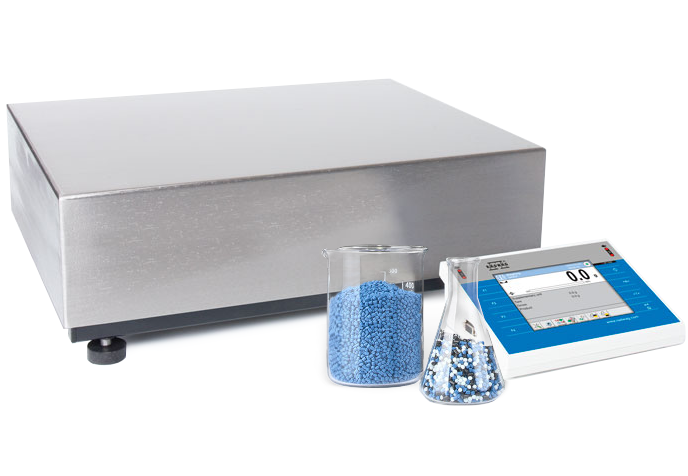

Radwag PUE 7.1.62.HRP High Resolution Scale WP-350-0010
High Resolution Scale

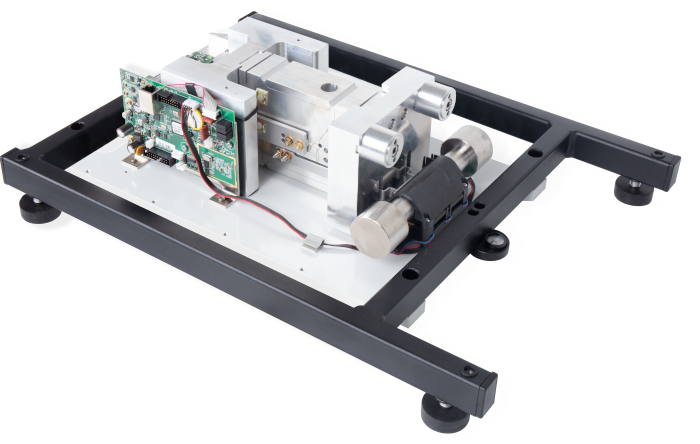

The HRP high resolution scales feature a cutting-edge measuring system based on MONOBLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2000 kg, with a repeatability of 3 g guaranteed.
9 advantages, 1 monobloc
The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved technology.
Repeatability not repeatable by others
Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort. The HRP high resolution scales feature a cutting-edge measuring system based on MONOBLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2 000 kg, with a repeatability of 3 g guaranteed.
For such industries as pharmaceutical, chemical, food and…
HRP scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the pharmaceutical, chemical and food industries.

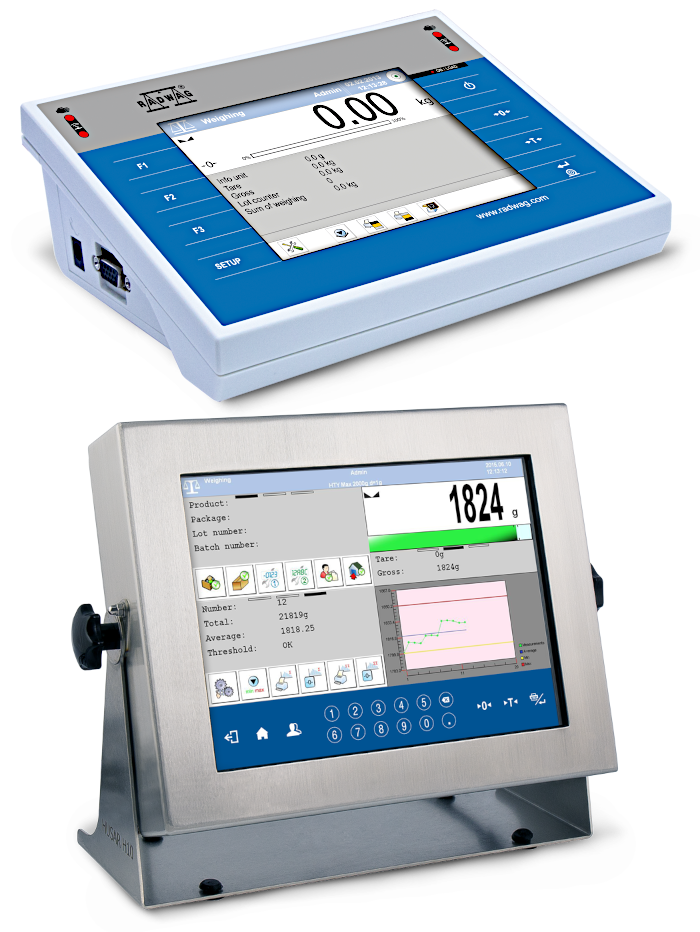

Choose a terminal
HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.
The PUE 7.1 terminal has:
- 5.7-inch color resistive display
- a touch-sensitive keyboard
- ABS plastic housing
- IP 43 protection rating
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®®,
- optional additional modules: additional A/D converter module DP6.
The PUE HY10 terminal features:
- 10.1-inch color graphic display
- touchscreen keyboard
- stainless steel housing
- IP 68/69 degree of protection
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
- optional additional modules: Wi-Fi®®, RS485, Profibus, Profinet, analog output module, 12 IN/ 12 OUT.

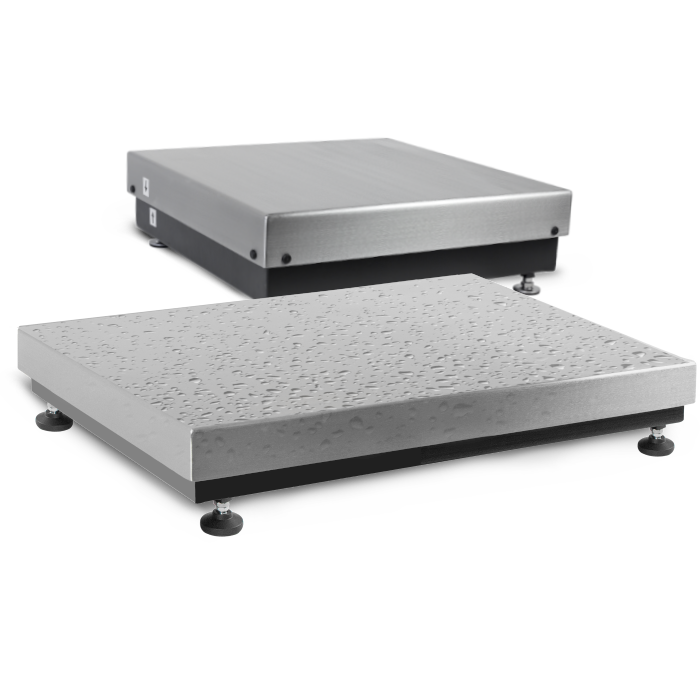

The power of steel
The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes.
The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.
Do you need ALIBI?
There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased.
Use the potential
Barcode scanners, receipt printers, label printers or additional displays – thanks to multipurpose software, PUE 7.1 scale can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Not just weighing
But also parts counting, checkweighing, percent weighing, animal weighing, formulations, differential weighing, labelling, peak hold and statistics. The power of PUE 7.1’s working mods.
Specifications
| Metrological parameters | |
| Maximum capacity [Max] | 62 kg |
| Minimum load | 25 g |
| Preload range | 30 kg |
| Readability [d] | 0.1 g |
| Tare range | -62 kg |
| Repeatability | 0.08 g |
| Linearity | ±0.4 g |
| Stabilization time | 2 s |
| Adjustment | internal (automatic) |
| Physical parameters | |
| Display | 5.7” Resistiv-Farb-Touchscreen |
| Weighing pan dimensions | 500×400 mm |
| Device dimensions | 500×400×180 mm |
| Packaging dimensions | 610×710×275 mm |
| Net weight | 30 kg |
| Gross weight | 35 kg |
| Construction | |
| Protection class | IP 66/67 construction, IP 43 indicator |
| Construction | mild steel St3S |
| Weighing pan material | Stainless steel AISI304 |
| Communication interface | |
| Communication interface | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Electrical parameters | |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Environmental conditions | |
| Operating temperature | +10 — +40 °C |
| Relative humidity | 40% — 80% |
