Thumbnail Filmstrip of Huber CC-304B with Pilot ONE 100-115V 1~ 50/60Hz 2005-0002-01 Images

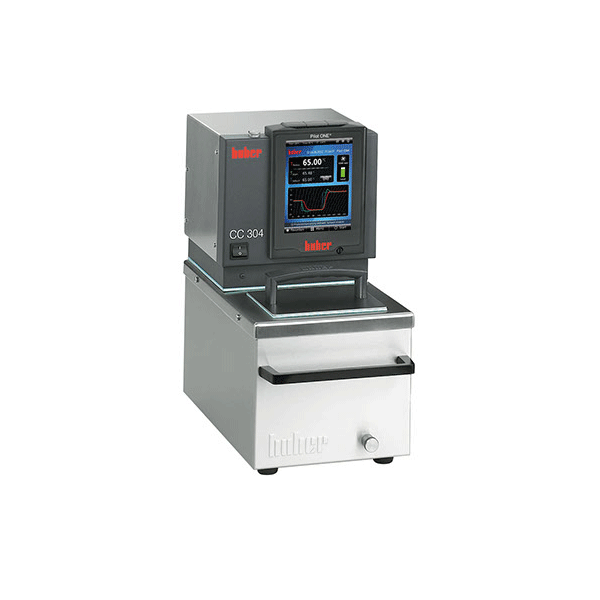

Huber CC-304B with Pilot ONE #2005.0002.01

Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications.

- The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

	Pilot ONE controller with Plug & Play technology
	Precise temperature control
	5.7“ touchscreen and comfortable menu navigation
	Overtemperature and low level protection
	Safety class III/FL (DIN 12876)
	Powerful pressure/suction pump
	Programmer with calendar and clock functions
	2-point calibration
	RS232 interface and Pt100 connection

General information & temperature controller
Temperature range	(-20) 28...300 °C
Temperature stability	±0.02 °C
Controller	Pilot ONE (E-grade "Basic")
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	210 x 335 x 392 mm \| 8.27 x 13.19 x 15.43 inches
Weight	15 kg \| 33.08 pounds
Heating / cooling capacity
Heating capacity	1 - 1,5 kW
Circulation pump
Pressure pump max.	25 lpm ; 0.7 bar \| 6.6 gpm ; 10.15 psi
Suction pump max.	18.5 lpm ; 0.4 bar \| 4.89 gpm ; 5.8 psi
Pump connection	M16x1 AG male
Permissible viscosity	50 mm²/s
Pump speed adjustable	Yes
Connections
Pt100 connection	Pt100
Digital interface	RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.	5...40 °C
Bath opening W x D / BD	130 x 100 / 155 mm \| 5.12 x 3.94 / 6.1 inches
Bath volume	5 Liters \| 1.32 gal
Filling volume min.	3.2 Liters \| 0.85 gal
Power supply	100-115V 1~ 50/60Hz
Current max.	14,5 A
Fusing	15 A
