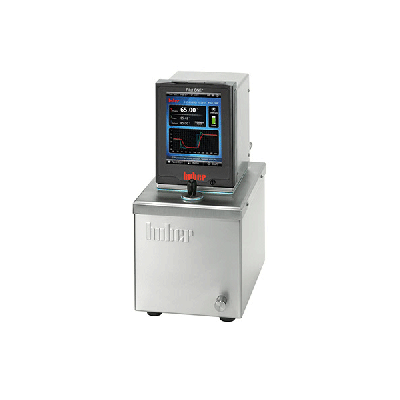

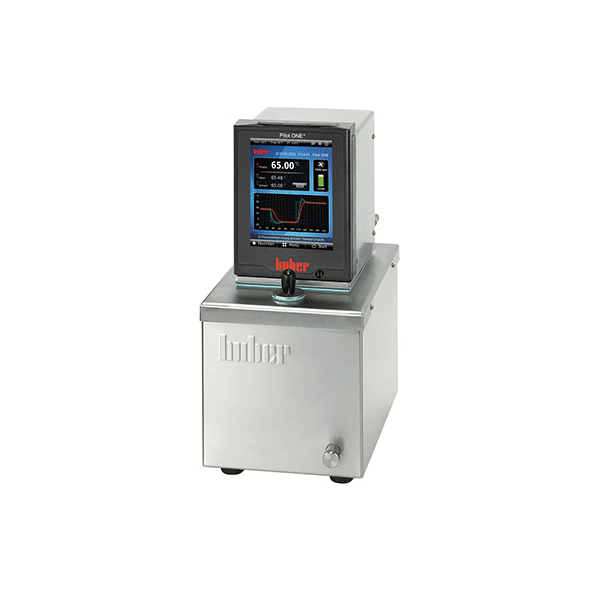

Huber CC-202C with Pilot ONE 100-115V 1~ 50/60Hz 2003-0002-01

Thumbnail Filmstrip of Huber CC-202C with Pilot ONE 100-115V 1~ 50/60Hz 2003-0002-01 Images

    Purchase Huber CC-202C with Pilot ONE 100-115V 1~ 50/60Hz 2003-0002-01

    Huber CC-202C with Pilot ONE 100-115V 1~ 50/60Hz 2003-0002-01

    SKU: 2003-0002-01




    Vendor: Huber
    Shipping Weight: 19.00 pounds
    Part Number: huber-2003-0002-01
    Our Price:
    $4,640.00

    Huber CC-202C with Pilot ONE #2003.0002.01

    Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an overtemperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.
    - The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

  • Pilot ONE controller with Plug & Play technology
  • Precise temperature control
  • 5.7“ touchscreen and comfortable menu navigation
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • Powerful pressure/suction pump
  • Programmer with calendar and clock functions
  • 2-point calibration
  • RS232 interface and Pt100 connection

    General information & temperature controller
    Temperature range  (-30) 45...200 °C
    Temperature stability ±0.02 °C
    Controller Pilot ONE  (E-grade "Basic")
    Safety class  III / FL
    Protection class  IP20
    Dimensions (W x D x H) 178 x 260 x 355 mm  |  7.01 x 10.24 x 13.98 inches
    Weight 8 kg  |  17.64 pounds
    Heating / cooling capacity
    Heating capacity  1 - 1,5  kW
    Circulation pump
    Pressure pump max.  27 lpm ; 0.7 bar  |  7.13 gpm ; 10.15 psi
    Suction pump max.  22 lpm ; 0.4 bar  |  5.81 gpm ; 5.8 psi
    Pump connection  M16x1 AG male
    Pump speed adjustable Yes
    Connections
    Pt100 connection  Pt100
    Digital interface  RS232, Ethernet, USB Device, USB Host
    Operating data
    Permissible ambient temp. 5...40 °C
    Bath opening W x D / BD Ø = 25 / 150 mm  |  Ø = 0.98 / 5.91 inches
    Bath volume  2 Liters  |  0.53 gal
    Power supply 100-115V 1~ 50/60Hz
    Current max. 15 A
    Fusing 15 A
