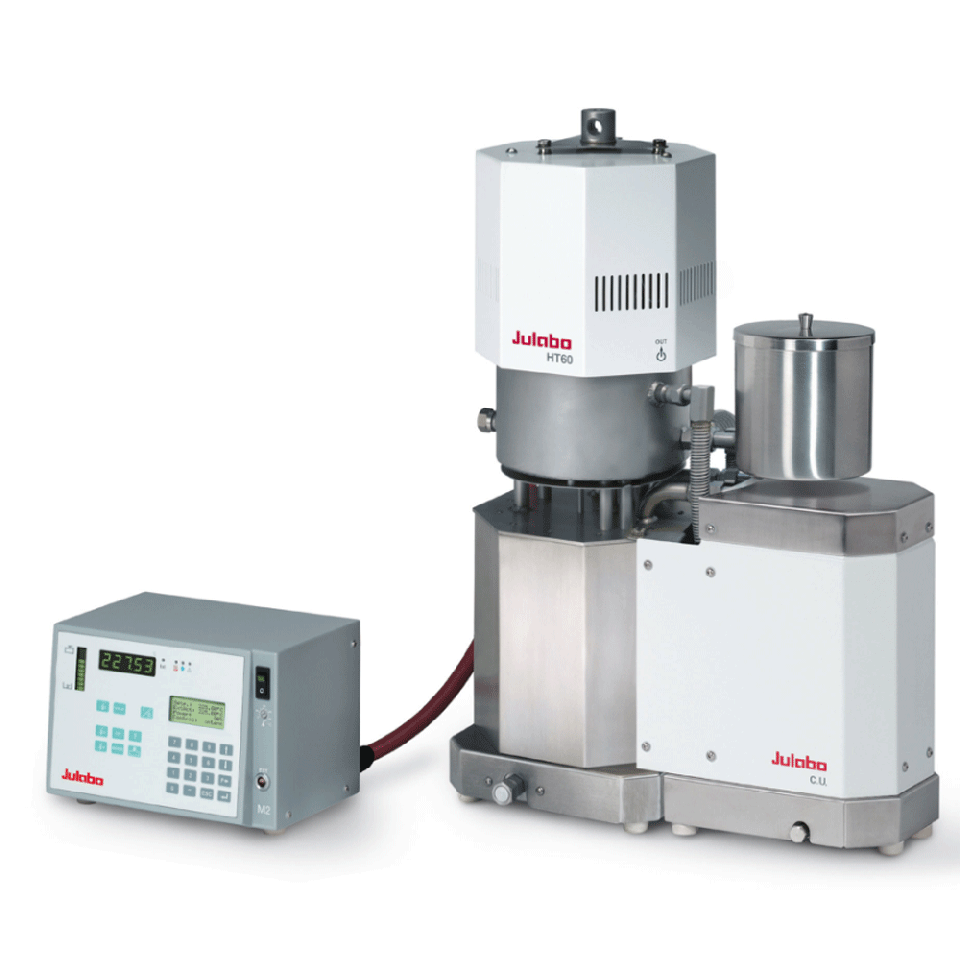

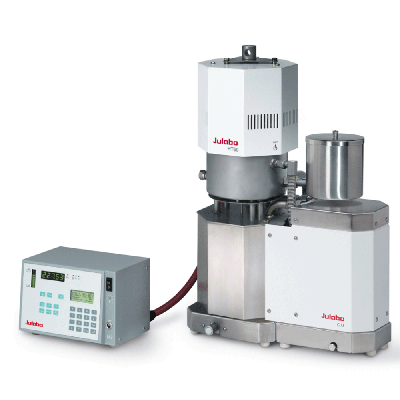

Julabo HT60-M3-CU High Temperature Circulator Model # 9800066
JULABO high temperature circulators offer peak performance, rapid heating and cooling, and fast action in case of exotherm reactions. The self-optimizing controller (ICC - Intelligent Cascade Control) ensures high temperature stability. The classic PID control parameters are available at the touch of a button for modification at any time. MULTI-DISPLAY (LED) and interactive LCD display offer convenient operation. The implemented heating automation, strong pump and controlled cooling produce rapid and precise results for temperature applications to +4 00 °C. The instruments are completely sealed. This prevents the release of oil fumes and results in long life time of the heat transfer liquid. Automatic air-purge allows easy filling. Electrical connections and the optional Profibus permit future-oriented automation technology. JULABO high temperature circulators are recommended for applications using jacketed reactors and autoclaves, distillation columns as well as laboratory, miniplant and process-scale applications.
Features
- Working temperature range up to 400 °C
- Self-optimizing ICC temperature controller
- Strong pumping capacity 18 l/min - 1.2 bar max
- Automatic air-purge allows easy filling
- Automated heat-up feature adjusts to external systems
- Bright MULTI-DISPLAY (LED) with display resolution 0.01 °C
- Backlit interactive 4-line LCD display
- On-line communication via built-in RS232 interface
- Stand-by input for external emergency switch-off
- Integrated programmer stores up to 6 profiles (60 sections each)
- Electronic level indication
- ATC function for simple correction of temperature variations
- ATC function allows use as testing instrument according to ISO 9000
- Tap water cooling for temperatures from 40 to 400 °C and rapid cooling
- Cooling capacity up to 15 kW (with tap water 20°C)
Technical Data
| Order No. | 9800066 |
| Category | High Temperature Circulators Forte HT |
| Working temperature range (°C) | +40 ... +400 |
| Temperature stability (°C) | ±0.01-0.1 |
| Setting / display resolution | 0.01 °C |
| Integrated programmer | 6x60 steps |
| Temperature Display | LCD , LED |
| Heating capacity (kW) | 6 |
| Pump capacity flow rate (l/min) | 14-18 |
| Pump capacity flow pressure (psi) | 11.6-17.4 |
| Pump connections | M16x1 |
| Filling volume (liters) | 2 |
| External Pt100 sensor connection | integrated |
| Digital interfaces | RS232 RS485 Optional Profibus |
| Ambient temperature | 5...40 °C |
| Dimensions W x L x H (inch) | Thermostat: 9.8 x 9.8 x 7.1 |
| Weight (LBS) | 81 |
| Classification according to DIN12876-1 | Classification III (FL) |
| Display for pump pressure and filling volume | Backlit indicator |
| Filling volume expansion vessel liters | 1.6+0.9 |
| Power requirement V / Hz / A | 3x 208/60/15 Additional voltage versions available |
| Dimensions Control unit B x T x H | 25 x 25 x 18 |
