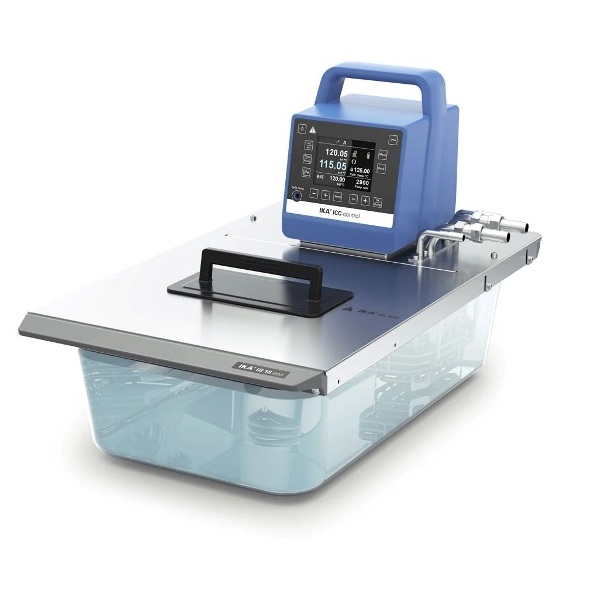

IKA ICC Control Eco 18 C 10000482
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.
Package includes
- ICC control compact Immersion Circulator
- IB 18 eco plastic bath (size L)
- CL.ICC large cover
- BL.ICC large bridge
- PCS.ICC pump connection set
- CC2 cooling coil
- PT 100.30 temperature sensor
total: 338 x 584 x 349 mm
bath opening: 245 x 305 mm *
max. bath opening: 286 x 325 mm **
Immersion depth. 85 mm–125 mm
*Dimensions to set plate at the bottom of bath.
** Maximum bath opening dimensions at the upper edge of the bath
Max. temperature in the plastic bath (“eco” series): 100°C (water only)
Technical data relates to the temperature control instrument included in the package
Technical Data
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000 W |
| Working temperature | room temp. +10K @1000rpm - 150 °C |
| Operating temperature min. (with external cooling) | -20 °C |
| Temperature display | yes |
| Temperature control | PID |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Temperature stability DIN 12876 | ±0.01 K |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution | 0.01 K |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | ±0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Adjustable safety circuit | 0 - 160 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.2 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Bath depth min. | 150 mm |
| Calibration option | yes |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 145 x 340 x 200 mm |
| Weight | 14.08 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 2100 W |
