Carbolite RHF 16/3 1600C 3 Liter High Temperature Chamber Furnace

Name: Carbolite RHF 16/3 1600C 3 Liter High Temperature Chamber Furnace
Brand: Spectra Services
SKU: carbolite-rhf-16-3
Availability: InStock

SKU: carbolite-rhf-16-3

Vendor: Carbolite

Shipping Weight: 170.00 pounds

Part Number: carbolite-rhf-16-3

Product Documents

Brochure

Get a Quote

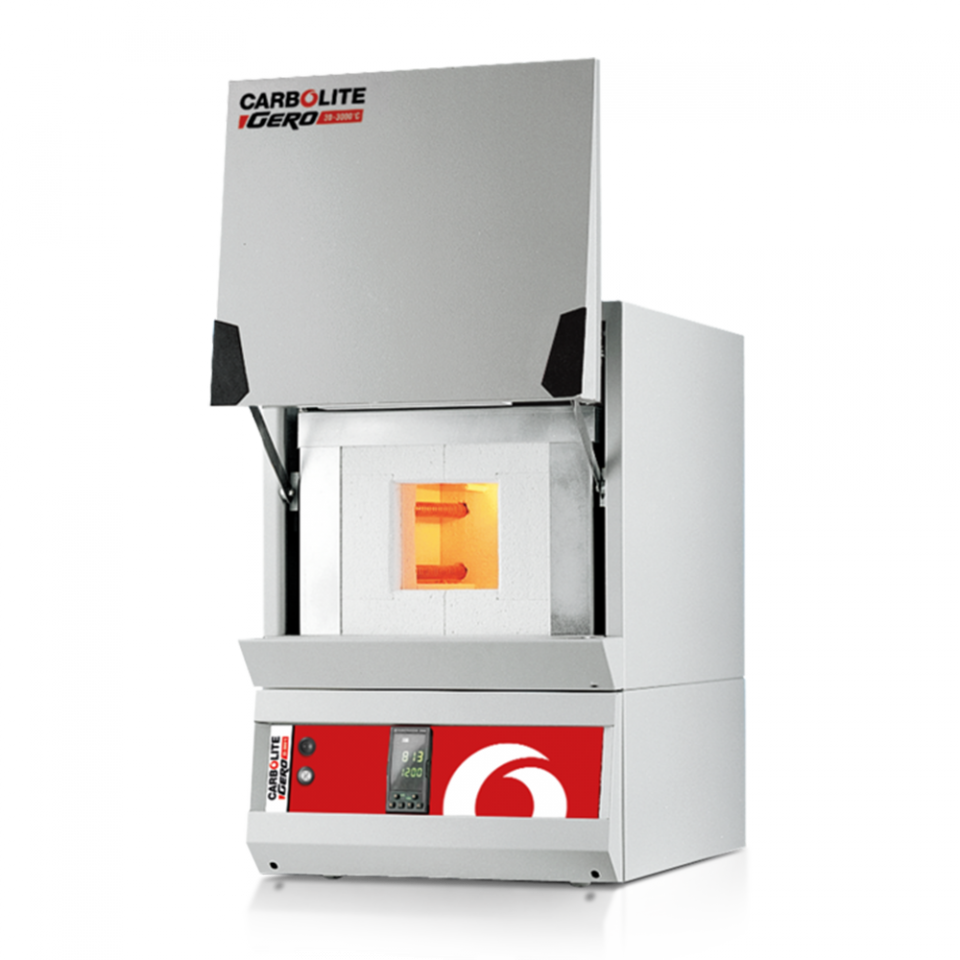

Carbolite RHF 16/3 1600C 3 Liter High Temperature Chamber Furnace

The RHF range of silicon carbide heated high temperature chamber furnaces comprises four chamber sizes, each available with three maximum operating temperatures of 1400 °C, 1500 °C and 1600 °C.

Robust construction and high quality elements provide rapid heating rates (typically reaching 1400 °C in under 40 minutes) and a long reliable working life.

STANDARD FEATURES

1400°C, 1500°C or 1600°C maximum operating temperature
Carbolite Gero 301 controller, with single ramp to set-point & process timer
3, 8, 15 or 35 litre chamber volumes
Vertical lift door keeps heated surface away from the user
Soft closing door (3 & 8 litre models only)
Silicon carbide heating elements provide long life and are able to withstand the stresses of intermittent operation
RHF 3 & 8 litre have a cast alumina hearth; RHF 15 & 35 have silicon carbide hearth
low thermal mass insulation for high energy efficiency

OPTIONS (SPECIFY THESE AT TIME OF ORDER)

Over-temperature protection (recommended to protect valuable contents & for unattended operation)
A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
Heating element protection tiles

RHF 16/3

Max temp (°C)	1600
Volume (litres)	3

Heat-up time (mins)	42
Dimensions: Internal H x W x D (mm)	120 x 120 x 205
Dimensions: External H x W x D (mm) H (door open)	655 x 435 x 610 (905)
Configuration	Bench-top
Max power (W)	4500
Holding power (W)	2300
Thermocouple type	R
Weight (kg)	42
Power supply required per phase	200-240V single phase 36A, 380-415V 2 phase + N 18A, 200-240V 3 phase delta 30A
