Thumbnail Filmstrip of QImaging Retiga R6 USB3.0 Color CCD Camera Images
QImaging Retiga R6 USB3.0 Color CCD Camera
SKU: 01-RET-R6-R-CLR-14-C
Vendor: QImaging
Part Number: qimaging-retiga-r6-color
Product Documents
QImaging Retiga R6 USB3.0 Color CCD Camera
QImaging puts the right tool in your hands when the goal is fast, sensitive imaging and documentation in true plug-and-play fashion. The Retiga R6 provides a 6.0 MP platform that will fit more into your field of view. It is ideal for time lapse, tile-and-stitch or stereo microscopy. The Retiga R6 has the technical features you need to improve limits of detection and quantification. More importantly, the camera becomes an intuitive extension of your imaging system, smoothly delivering data from the super speed USB3.0 interface to your computer.
Inside the R6 camera, QImaging introduces Intelligent Quantification™ - on camera intelligence features that correct for defective pixels, remove accumulated dark current and make high dynamic range imaging available. Fast 50 MHz pixel digitization increases frame rates, providing high speed to manage pixel volume.
A great camera deserves great software for acquisition.Ocular is QImaging's all new imaging platform and is included with every camera purchase. View Ocular videos to learn more!
Features
- 75% peak QE combined with low noise electronics reveals the weak signals missed by industrial cameras
- Increased exposure time and binning enables detection of the faintest signals with deep sensor cooling
- 50MHz two port readout delivers frame rate for finding, focusing and imaging samples
- Reduce photobleaching and phototoxicity on samples.
- Intelligent Quantification™ provides advanced real-time FPGA algorithms to deliver better image quality
- Ocular Imaging Software
The Retiga R6 CCD camera is a great solution for fast, sensitive microscopy imaging and documentation. This high resolution, 6 megapixel camera has a large field of view for sample detection and connects easily through high speed USB 3.0.
Camera Model
| Model | Megapixels | Sensor Area | Frame Rate |
| Retiga R6 | 6 | 12.5 mm x 10 mm 16 mm diagonal | 7fps @ 14-bit |
Key Features:
Large Field of View
The Retiga R6 delivers a large, 16 mm diagonal field of view designed to increase throughput and maximize the amount of data captured in a single frame.
Image larger samples or increase throughput by imaging multiple cells at once by taking advantage of a larger field of view.
High Resolution
The Retiga R6 features 6 million, 4.54 µm pixels to maximize the resolving power of your system.
The small pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.

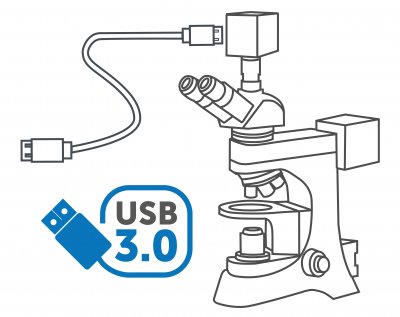

Simple Installation
The Retiga R6 delivers data over the simple, versatile and high-speed USB 3.0 interface. This standard, accepted interface is present on most modern computers, simplifying connectivity.
The Retiga R6 is also supported on the latest Windows operating systems ensuring modern system compatibility.
Family Specifications
| Sensor Technology | CCD |
|---|---|
| Quantum Efficiency | 75% |
| Pixel Size | 4.54 µm x 4.54µm |
| Supported Interfaces | USB 3.0 |
| Spectrum Capabilities | Visible (400-700 nm) Near Infrared (700-1000 nm) |
| Read Noise (RMS) | 5.5 e- |
