- Heavy duty construction
- Variable speed and adjustable rotation axis
- Optional accessories include rotisseries and a rocking platform
- Safe for use in temperature controlled environments
|

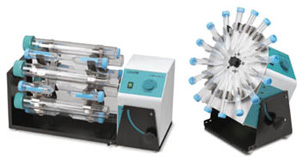

Labnet’s LabRoller Rotators can be used on the bench for general mixing applications and Western blotting. They can also be placed in temperature controlled environments, from 4º to 65ºC, expanding their use to Northern and Southern hybridizations. The rotation speed is variable, from 0 to 50rpm, to provide the specific level of agitation required for a variety of applications. A three hour timer with hold position controls operation.
|
The angle of the rotation axis is continuously adjustable from the horizontal position to a vertical position (90°). Along with the variable speed, this angle adjustment allows for precise control over the level of agitation.
|
| Two versions of the LabRoller Rotator are available. The standard model accepts rotisseries, carousels and a rocking platform. The compact version accepts only the carousels. A variety of rotisseries and carousels are available to hold sample containers such as hybridization bottles, 15 and 50 ml tubes, blood tubes and Erlenmeyer flasks. |
|
|
|
|
|
|
| |
| |
Specifications |
: |
|
|
|
|
| |
Speed range |
0 to 50 rpm |
|
Timer |
Continuous, no timer |
| |
Rotation axis |
Adjustable, 0° to 90° |
| |
Ambient operating temperature |
5° |
| |
Ambient operating range |
4° to 65°C |
| |
Dimensions(WxDxH) |
18.5 x 10.6 x 9.7 inches/47 x 27 x 24.5 cm |
| |
Weight |
17.6 lb/8 kg |
| |
Electrical* |
120V~, 60 Hz |
| |
* Other voltages available upon request |
Ordering Information: |
|
|
| |
Cat Number |
Item Description |
| |
|
|
| |
H5000 |
LabRoller Rotator without rotisserie |
| |
|
|
| |
H5100 |
Compact LabRoller Rotator without rotisserie |
| |
|
|
| |
H1200-RA |
Rocking platform, fits H-5000 only |
| |
|
|
| |
H1212-35A |
Rotisserie for 12 of 35x300mm bottles,or 24 of 50ml conical tubes, fits H-5000 only |
| |
|
|
| |
H1212-40VA |
Rotisserie for 12x50ml conical tubes held vertically, fits H-5000 only |
| |
|
|
| |
H1264-VA |
Rotisserie for 64x1.5ml or 32x15ml tubes held horizontally, fits H-5000 only |
| |
|
|
| |
H1264-HA |
Rotisserie for 64x1.5ml or 32x15ml tubes held horizontally, fits H-5000 only |
| |
|
|
| |
H5100-RODS |
Carousel stocking rods for H5100 and H5000 |
| |
|
|
| |
H5108-50A |
Carousel for 8x50ml conical tubes, fits both units |
| |
|
|
| |
H5116-15A |
Carousel for 16x15 ml conical tubes, fits both units |
| |
|
|
| |
H5132-HA |
Carousel for 32x1.5ml tubes held horizontally, fits both units |
| |
|
|
| |
H5132-VA |
Carousel for 32x1.5ml tubes held vertically, fits both units |
| |
|
|
| |
H5250-4A |
Carousel for 4x250 ml Erlenmeyer flasks, fits both units |
| |
|
| |
| |
|
