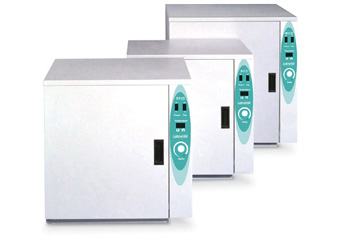

Labnet’s 311 and 611 High Performance Incubators feature a broad temperature range and a digital microprocessor for precise control.
|
Incubator temperature is set and displayed digitally. Temperature is easliy set using the membrane keypad. The chamber is jacketed in warm air from all sides, including the door. Heating can be set to gravity convection, or for more rapid temperature change and better uniformity, mechanical convection. An independent safety thermostat protects the incubator and its contents in the event of a primary controller failure. All electronics are located away from the chamber, protected from heat related stress by a cooling fan.
|
| Upon opening the outer door, the stainless steel chamber is illuminated. An inner glass door allows for easy vewing of samples. Small equipment, such as rockers and shakers, can be powered by the interior electrical outlet. Each incubator is supplied with two adjustable stainless steel shelves. |
|
|
|
- Expanded temperature range
- Fail-safe over-temperature protection
- Switchable turbo fan
- Digital microprocessor
|
|
|
|
| |
| |
|
Specifications |
: |
|
|
|
|
| |
Model 311D |
|
| |
Chamber volume |
|
2.75 cu. ft. |
| |
Temperature range |
|
Ambient +5° to 95°C |
| |
Temperature uniformity @37°/56°C/90°C |
|
±0.2°C/±0.5°C/±0.75°C |
| |
Temp. display |
|
to 0.1°C |
| |
Chamber Dimensions (W x D x H) |
|
17 x 14 x 20 inches/43.2 x 35.6 x 51 cm |
| |
Exterior Dimensions (W x D x H) |
|
27 x 20 x 29 inches/68.6 x 51 x 73.7 cm |
| |
Weight |
|
140 lb/63.6 kg |
| |
Electrical |
|
120V~, 60 Hz |
| |
|
|
|
| |
Model 611D |
|
|
| |
Chamber volume |
|
6.0 cu. ft. |
| |
Temperature range |
|
Ambient +5° to 95°C |
| |
Temperature uniformity @37°/56°C/90°C |
|
±0.25°C/±0.6°C/±0.9°C |
| |
Temp. display |
|
to 0.1°C |
| |
Chamber dimensions (WxDxH) |
|
21 x 20 x 25 inches/53.3 x 51 x 63.5 cm |
| |
Exterior dimensions (WxDxH) |
|
31 x 26 x 34 inches/78.7 x 66 x 86.4 cm |
| |
Weight |
|
185 lb/84 kg |
| |
Electrical |
|
120V~, 60 Hz |
Ordering Information: |
|
|
| |
Cat Number |
Item Description |
| |
|
|
| |
I-5311-D |
Digital Incubator, Model 311D |
| |
|
|
| |
I-5319 |
Additional shelf for 311D incubator |
| |
|
|
| |
I-5611-D |
Digital Incubator, Model 611D |
| |
|
|
| |
I-5619 |
Additional shelf for 611D incubator |
| |
|
|
|
| |
| |
|
