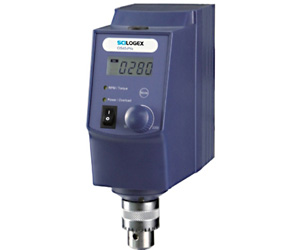

Overhead Digital Stirrer SCILOGEX OS40-Pro
High Perfomance Overhead Digital Stirrer OS40-Pro LCD from SCILOGEX with RS232 connection
|
 |
|
| Features: |
- Accurate microprocessor stirring speed control guarantees speed precision
- Anti-spill microprocessor control slow start up prevents sample spills
- Large chuck diameter for many shaft types
- Speed range from 50 to 2200rpm
- Brushless DC motor drive, low noise, maintenance free
- Set value and actual value can be displayed, real-time monitoring of torque and speed via LCD display
- High torque for viscous medium stirring
- Overload protection: motor will automatically stop in case of continuous overload
- Over torque protection automatically stops the motor
- Safety circuit: automatically stops motor in abnormal conditions
- RS232 for PC control
|
|
|
| Specifications: |
| Max. capacity (H2O)[L] |
40 |
| Motor rating input [W] |
120 |
| Motor rating output [W] |
100 |
| Speed range [rpm] |
50-2200 |
| Speed display accuracy[rpm] |
±3 |
| LCD speed display |
(OS40-Pro, OS20-Pro) |
| Speed display res. [rpm] |
±1 |
| Max. torque [Ncm] |
60 |
| Torque display |
LCD (OS40-Pro, OS20-Pro) |
| motor protection |
LED light flash, auto stop |
| Overload protection |
LED light flash, auto stop |
| Viscosity max. [mPas] |
50000 |
| Chuck range diameter [mm] |
0.5-13 |
| Rod size[dia.xl] (mm) |
14 x 220 |
| Dims. [W x H x D] (inches) |
3.3 x 8.7 x 7.3 / 83x220x186 mm |
| Weight [Lbs] |
5 1/2 (2.8kg) |
| Voltage [VAC] |
100-240 |
| Frequency [Hz] |
50/60 |
| Power [W] |
130 |
| Max. relative humidity[%] |
80 |
| RS232 interface |
Yes (OS40-Pro, OS20-Pro) |
| Protection class. to DIN/EN 60529 |
IP21 |
| |
|
|
| Order Information: |
| |
|
| Cat No. |
Description |
| 84020301 |
SCILOGEX OS40-Pro LCD Overhead Digital Stirrer, excludes impeller & stand, 110V/60Hz |
| 18900070 |
Universal stand, including support holder and clamp |
| 18900131 |
Plate stand (200mmW x 315mmD x 780mmH), inc. support clamp |
| 18900071 |
Cross stirrer, 316L stainless steel |
| 18900072 |
Straight stirrer, 316L stainless steel |
| 18900073 |
Blade stirrer, 316L stainless steel |
| 18900074 |
Centrifugal stirrer, 316L stainless steel |
|
|
|
|
